A2000 EPROM Burner
 connects to: Zorro II
Alcomp A2000 EPROM Burner

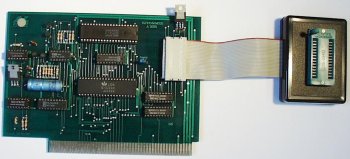

The "Alcomp A2000" is a half length Zorro II Card designed for programming EPROMs. It has an external texttool socket which is connected by a ribbon cable. It is able to burn standard and CMOS Eproms up to 27(c)512. The card has one jumper labelled "A/B" and "C" which might correspond to the revision of A2000 the card is to be used in, however it has been reported that a revision 6.2 A2000 requires the jumper to be set to "A/B". This card is a non-autoconfig board. When installing this card, the voltage regulator may come into contact with the A2000 case and also the ribbon cable may be too long. If burning fails, shorten the ribbon cable. The software supplied with the card is rather old now and is called "EPR_2000 V1.7" and does not work with an 060 installed. This might be due to timing problems because the software expects to see a standard 68000@7Mhz.
Page contributors: Michael Böhmer, Sebastian Breitkreuz
Updated: 8/10/2005 . Added: 12/22/2004
