DCE Keyboard Interface
 connects to: Other

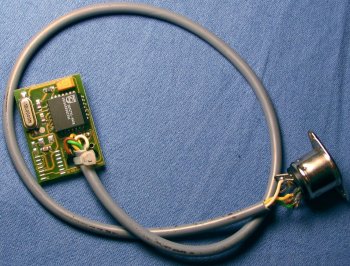

"Type 1", Front

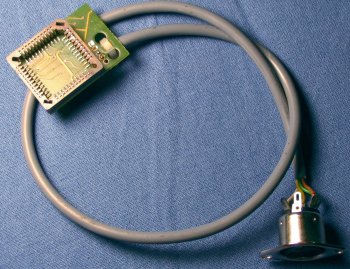

"Type 1", Back

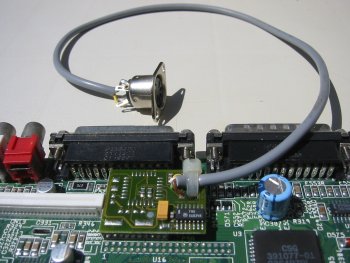

"Type 2"
Hi Res Version, "Type 1", Back
- 1608 x 1236, 638K
Hi Res Version, "Type 2"
- 1600 x 1200, 813K
A keyboard interface which lets you attach an external keyboard to the A1200. It connects to the CIA at U7 near the original keyboard connector. The "type 2" adaptor shown in the pictures does not support PC keyboards, however the "type 1" may do because it has extra components on the PCB, but this has not been confirmed.
Page contributors: Eidofoor, Jari Eskelinen
Updated: 9/12/2006 . Added: 12/22/2004
