Digtizers & Framegrabbers /
MacroSystem (US & Germany):
 VLab
 connects to: Zorro II

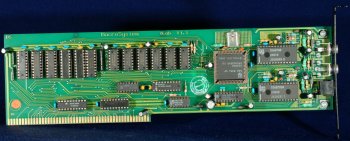

VLab Rev 1.0
VLab Rev 1.3, Y/C
Hi Res Version, VLab Rev 1.0
- 2760 x 1124, 621K
Hi Res Version, VLab Rev 1.3, Y/C
- 2943 x 1185, 684K
Image of Vlab Box, Front
- 320 x 240, 22K
Image of Vlab Box, Back
- 320 x 240, 21K
Image of Vlab box and contents
- 320 x 240, 24K
The VLab is a full length Zorro II, 24bit real-time digitizer. The card is capable of digitizing 30 full frames per second. The card contains two composite connectors, the Y/C version has an SVHS/Hi8 connector in addition to the composite connectors. It requires at least 1MB of Chip RAM, 2MB of Fast RAM and requires at least AmigaOS 2.0
Page contributors: Dagfinn Olsen, Mike Woods, RiWa & Friends.
Updated: 1/18/2005 . Added: 12/22/2004
