SCSI Controllers /
Jürgen Kommos:
 JK SCSI
 connects to: Side Expansion Slot

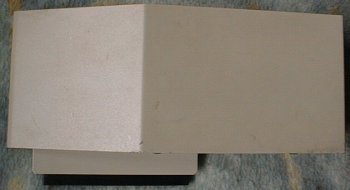

JK SCSI Unit
Hi Res Version, JK SCSI Unit
- 838 x 454, 57K
Image inside the unit with HD fitted
- 909 x 495, 112K
Image inside the unit
- 991 x 584, 126K
Image of PCB, Front
- 871 x 594, 119K
Image of PCB, Back
- 829 x 526, 102K
A SCSI Controller (jkscsi.device) which connects to the side expansion port of the A500/+. A single hard disk can be installed inside the unit, via a 50pin internal SCSI connector. The card also contains two autoboot ROMS. This unit appears to be identical to the First Edition made by Rossmöller Handshake.
Page contributors: Rainer Kraus.
Updated: 3/16/2005 . Added: 3/16/2005
