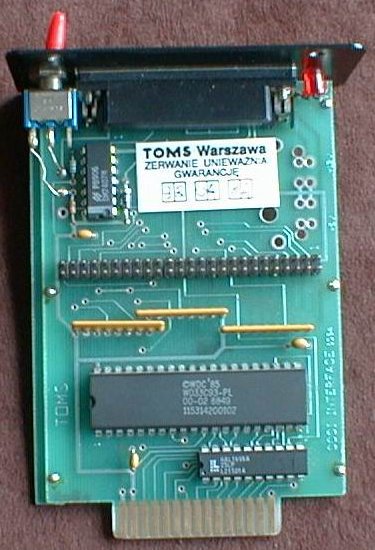

Front of CDTV SCSI

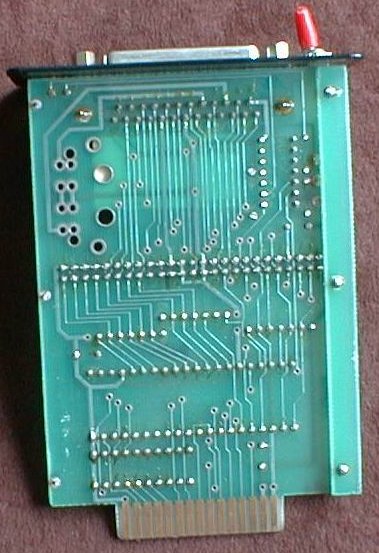

Back of CDTV SCSI
This SCSI controller connects to the rear expansion slot on the CDTV. It provides it with an internal 50pin connector and an external DB25 SCSI connector. The backplate also contains an on/off switch and an LED presumably to show hard drive access. The card uses the WD33C93-PL SCSI chip
